Local Network Integration

KDS Orders

Contents

Sending Orders via TCP

Once you’ve established a connection to a KDS screen you can create/update/cancel KDS orders using TCP Port 9104.

Create KDS Order

Body Parameters

Property Required Type Description
command yes string create-order
order yes Order object containing KDS order data

command property added in version 2.21.30, for backwards compatibility default value is create-order

Order

Property Required Type Description
id yes string unique id of this KDS order
name yes string order/customer name
time yes int milliseconds since epoch
pickupTime no date date/time for order pickup in ISO 8601 format
phoneNumber no string customer phone number in E.164 format
optInForSms no bool if false KDS will not message customer for this order; default is true
deliveryAddress no string delivery address for order
mode yes string accepted values: For Here, ToGo, Pickup, DriveThru, Delivery, Curbside
deliveryHandoff no bool if mode is Delivery and this is true order will display as Delivery Handoff
server no string name of employee creating the order
items yes KdsItem[ ] array of menu items
terminal no string POS terminal creating the order
specialInstructions no string special instructions for the order
customerArrivedUrl no url if present the URL will be added to the order received and order ready messages
vehicleModel no string vehicle make and model
vehicleColor no string vehicle color
costs no Costs object with order costs
deliveryService no DeliveryService object with delivery service information
originSource no string optional parameter that gets appended to the order name
checkNumber no string optional parameter that gets appended to the order name
priority no bool if true order card will be flagged as priority and moved to front of queue
prepTimeDuration no ISO 8601 string time it takes to prepare order; example: PT30M; only applied if auto hold future orders is on
covers no int The number of covers/guests on the order.
loyaltyMember no bool if true a badge will be displayed on the order card

KDS Item

Property Required Type Description
lineId yes string must be unique; used for processing subsequent order update commands
name yes string name of item
qty yes int quantity of item
price no string price of item; can include currency symbol
mods yes Modifier[ ] array of item modifiers; send empty array for items without modifiers
specialInstructions no string special instructions for item
course no string course name/number of the item
courseStatus no string valid values are “straightFire”, “hold”, “fire”, and “pickup”
seat no string seat number of the item
itemGroup no ItemGroup Inlcude if this item belongs to an item group / combo. It’s a way to tie together items on the order card UI.

Modifier

Property Required Type Description
name yes string name of modifier
qty no int Quantity of modifier. Shows on the order card if qty > 1.

previously item.mods was a string[], which is still supported for backwards compatibility

Costs

Property Required Type Description
subtotal no string subtotal of order
tax no string tax on order
deliveryFee no string delivery fee on order
surcharge no string surcharge on order
convenienceFee no string convenience fee on order
tip no string tip on order
additionalFees no additionalFees[ ] array of additional fees
total no string total of order
promoCodes no promoCodes[ ] array of promo codes on order

all properties in the Costs object are strings and can include currency symbols for display

Additional Fees

Property Required Type Description
name yes string name of fee
amount yes string amount of fee; can include currency symbol

Promo Codes

Property Required Type Description
name no string name of promo code
amount yes string amount of promo; can include currency symbol

Delivery Service

Property Required Type Description
name yes string name of delivery service
orderId yes string delivery service order ID
driverPhone no string delivery driver phone number in E.164 format

Item Group

Property Required Type Description
id yes string the id that will tie together multiple items on an order.
name yes string the item group name that will display on the order cards.
note no string optional field to include a note for the item group. Displays at the bottom of the group.

All properties of an itemGroup should be the same for all items in the group. Items of the same group cannot be split on KDS. This means that the course, seat, and courseStatus of items in the same group must be the same. Unexpected behavior may occur if not.

Example payload included on each item in the group:

"itemGroup": {
    "id": "1",
    "name": "Burger Combo",
    "note": "Sauce on side"
}


Example Json Payload

{
    "command": "create-order",
    "order": {
        "id": "123",
        "name": "John Doe",
        "time": "2026-01-01T12:00:00.000Z",
        "pickupTime": "2026-01-01T13:00:00.000Z",
        "mode": "Pickup",
        "items": [
            {
                "lineId": "1",
                "name": "Hamburger",
                "qty": 1,
                "mods": [
                    {
                        "name": "No Ketchup",
                        "qty": 1
                    },
                    {
                        "name": "Side Fries",
                        "qty": 1
                    }
                ],
                "course": "Course 1",
                "seat": "Guest 1",
                "courseStatus": "fire"
            },
            {
                "lineId": "2",
                "name": "Vanilla Shake",
                "qty": 1,
                "mods": [],
                "course": "Course 2",
                "seat": "Guest 1",
                "courseStatus": "hold"
            }
        ]
    }
}

Responses

Response Type Response Value
Success order.id value
Failure Unable to parse data
Failure DUPLICATE_ORDER_ID - An order with the same order.id is on the screen or is on hold

Update KDS Order

Overview

After sending a KDS order to a screen you can update the content of the order using the update-order command and supplying the updated order payload. You will need to re-send the entire order payload, including fields that have not changed.

The lineId property is used to add, update, or delete menu items. To delete menu items from an order remove the item’s lineId from the items array. To add menu items to an order add an additional item with a new lineId to the items array.

Body Parameters

Property Required Type Description
command yes string update-order
order yes Order object containing KDS order data

Example

{
    "command": "update-order",
    "order": {
        "id": "123",
        "name": "Jane Doe",
        "time": "2026-01-01T12:00:00.000Z",
        "pickupTime": "2026-01-01T13:00:00.000Z",
        "mode": "Pickup",
        "items": [
            {
                "lineId": "1",
                "name": "Hamburger",
                "qty": 1,
                "mods": [
                    {
                        "name": "No Ketchup",
                        "qty": 1
                    },
                    {
                        "name": "Side Fries",
                        "qty": 1
                    }
                ],
                "course": "Course 2",
                "seat": "Seat 1",
                "courseStatus": "fire"
            },
            {
                "lineId": "2",
                "name": "Chocolate Shake",
                "qty": 1,
                "mods": [],
                "course": "Course 3",
                "seat": "Seat 1",
                "courseStatus": "hold"
            },
            {
                "lineId": "3",
                "name": "Onion Rings",
                "qty": 1,
                "mods": [
                    {
                        "name": "BBQ Sauce",
                        "qty": 1
                    }
                ],
                "course": "Course 1",
                "seat": "For Table",
                "courseStatus": "fire"
            }
        ]
    }
}

Responses

Response Type Response Value
Success order.id value
Failure Unable to parse data
Failure ORDER_DOES_NOT_EXIST - The order.id sent in the update request does not exist on the device

Screen Behavior

  • An updated order shows with an edited icon in the header
  • Added items appear with a + icon
  • Updated items appear with a edit icon
  • Removed items appear with a x icon and items are struckthrough

Partially Update KDS Order

Overview

After sending a KDS order to a screen you can update the content of the order using the partial-update-order command and supplying a payload of properties to update. A partial order update does not require all order properties to be included in the body request. This request should include only the properties that you wish to change. This may be helpful if your system operates on an eventual consistency model, where the order state may not be immediately synced between terminals. Using partial updates, you may rely on the KDS to manage the final order state.

Body Parameters

Property Required Type Description
command yes string partial-update-order
order yes Partial KDS Order object containing KDS order data

Partial KDS Order

Property Required Type Description
id yes string unique id of this KDS order. Must match the id from the original create request.
name no string order/customer name
mode no string accepted values: For Here, ToGo, Pickup, DriveThru, Delivery, Curbside
pickupTime no date date/time for order pickup in ISO 8601 format
phoneNumber no string customer phone number in E.164 format
server no string name of employee creating the order
specialInstructions no string special instructions for the order
vehicleModel no string vehicle make and model
vehicleColor no string vehicle color
priority no bool if true order card will be flagged as priority and moved to front of queue
deliveryAddress no string delivery address for order
deliveryService no DeliveryService object with delivery service information
costs no Costs object with order costs
originSource no string third party order source
checkNumber no string optional parameter that gets appended to the order name
deliveryHandoff no bool if mode is Delivery and this is true the order will display as Delivery Handoff
prepTimeDuration no ISO 8601 string time it takes to prepare order; example: PT30M; only applied if auto hold future orders is true
itemsToAdd no KdsItem[ ] array of menu items to add to the order
itemsToUpdate no KdsItem[ ] array of menu items to update on the order
itemsToRemove no string[ ] array of lineId’s to remove from the order
covers no int The number of covers/guests on the order.
loyaltyMember no bool if true a badge will be displayed on the order card
  • The only required property is id
  • itemsToAdd: Uses the provided lineId on the Item to determine if this is a new Item on the order. Duplicate lineId’s will be ignored.
  • itemsToUpdate: Uses the provided lineId on the Item to determine which Items to update on the order. NonexistentlineId’s will be ignored. Include all item properties when updating - partial item updates are not supported.
  • itemsToRemove: Takes an array of lineId to determine which Items to remove from the order. Nonexistent lineId’s will be ignored.

IMPORTANT: Only include order properties that should be updated. If a property is included on the request it will attempt to overwrite it on the order. Either send properties as null or do not include them in the body at all.

Example

Update the order name and add an item to the order already on the KDS screen. Both of these requests are valid and yield the same result:

{
    "command": "partial-update-order",
    "order": {
        "id": "123",
        "name": "New order name",
        "mode": null,
        "pickupTime": null,
        "phoneNumber": null,
        "server": null,
        "specialInstructions": null,
        "vehicleModel": null,
        "vehicleColor": null,
        "priority": null,
        "deliveryAddress": null,
        "deliveryService": null,
        "costs": null,
        "originSource": null,
        "checkNumber": null,
        "deliveryHandoff": null,
        "prepTimeDuration": null,
        "covers": null,
        "loyaltyMember": null,
        "itemsToAdd": [
            {
                "lineId": "3",
                "qty": 1,
                "name": "Hamburger",
                "mods": [
                    {
                        "name": "no tomato",
                        "qty": 1
                    }
                ]
            }
        ],
        "itemsToUpdate": null,
        "itemsToRemove": null
    }
}

OR

{
    "command": "partial-update-order",
    "order": {
        "id": "123",
        "name": "New order name",
        "itemsToAdd": [
            {
                "lineId": "3",
                "qty": 1,
                "name": "Hamburger",
                "mods": [
                    {
                        "name": "no tomato",
                        "qty": 1
                    }
                ]
            }
        ]
    }
}

Responses

Response Type Response Value
Success order.id value
Failure Unable to parse data
Failure ORDER_DOES_NOT_EXIST - The order.id sent in the update request does not exist on the device

Screen Behavior

  • An updated order shows with an edited icon in the header
  • Added items appear with a + icon
  • Updated items appear with a edit icon
  • Removed items appear with a x icon and items are struckthrough

Cancel KDS Order

Overview

After sending a KDS order to a screen you can cancel the order using the cancel-order command and supplying the order’s id value.

Body Parameters

Property Required Type Description
command yes string cancel-order
order yes Cancel Order object containing KDS order data

command property added in version 2.21.30, for backwards compatibility default value is create-order

Cancel Order

Property Required Type Description
id yes string unique id of the KDS order to update

Example

{
	"command": "cancel-order",
	"order": {
		"id": "123"
	}
}

Responses

Response Type Response Value
Success order.id value
Failure Unable to parse data
Failure ORDER_DOES_NOT_EXIST - The order.id sent in the cancel request does not exist on the device

Screen Behavior

  • if the KDS order is still displayed on the KDS screen it will change to the Cancelled state

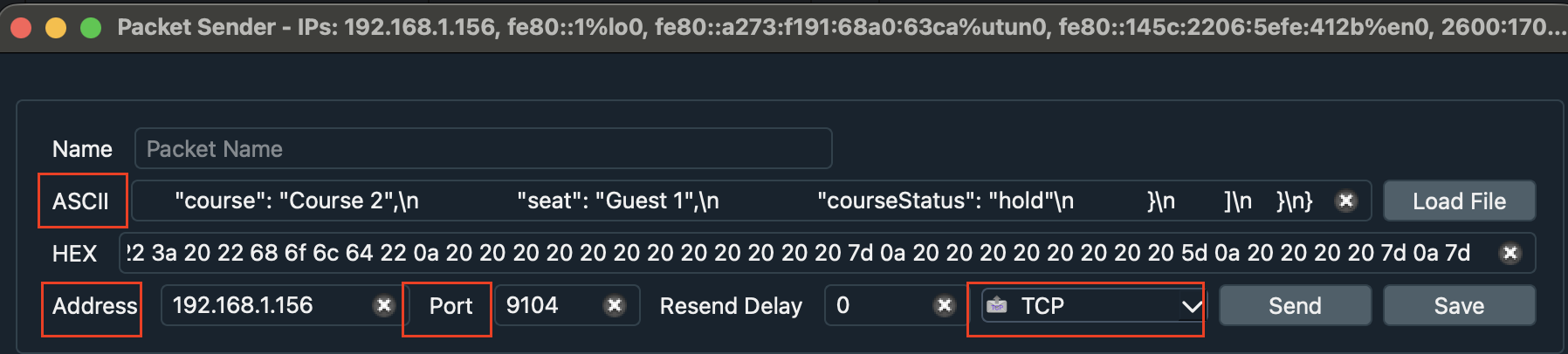

Test Sending Orders Using Packet Sender

You can use a program like Packet Sender to test sending/updating orders on Fresh KDS.

  1. Download packet sender using the link above
  2. Open the Fresh KDS app on your tablet and obtain the device IP address. Settings > General > Ip Address
  3. Open packet sender and fill out information to route an example order to Fresh KDS
    • Copy and paste the example order json into the ASCII field
    • Enter the IP Address as the Address
    • Enter 9104 as the Port
    • Select TCP as the protocol
  4. Hit Send. If successful, you will see the order appear on the KDS screen. Note the possible success/failure responses. image

Examples of Object Mapping to KDS Screens

KDS Order


Take Out Order - Delivery


Take Out Order - Curbside
